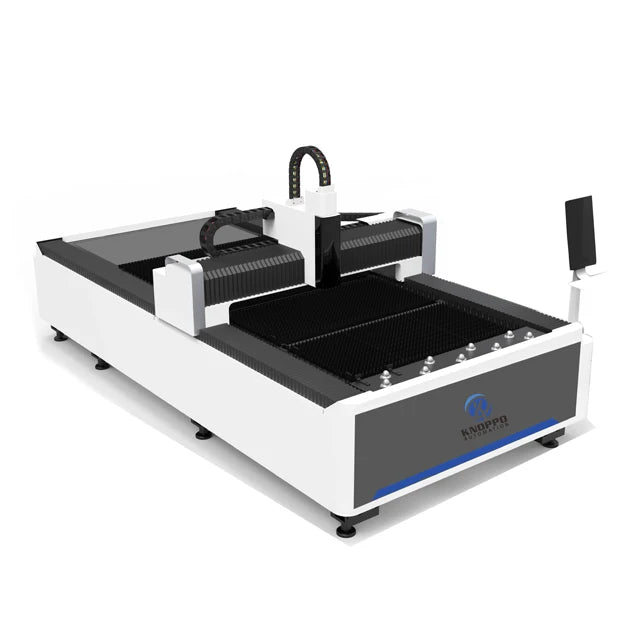

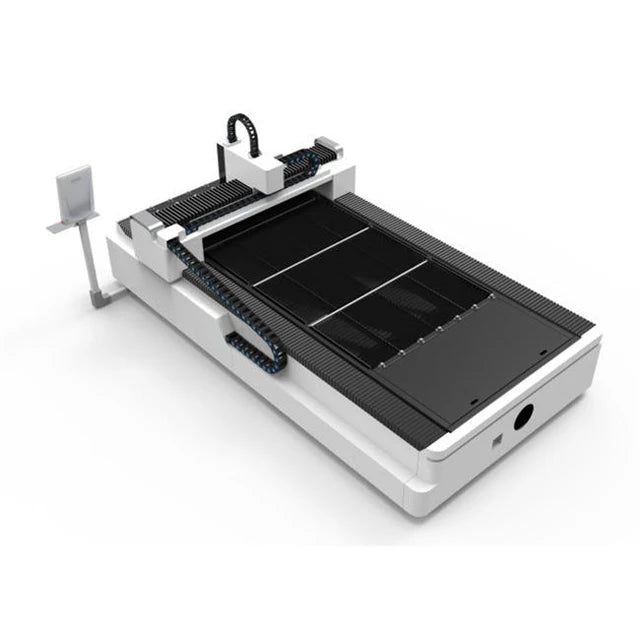

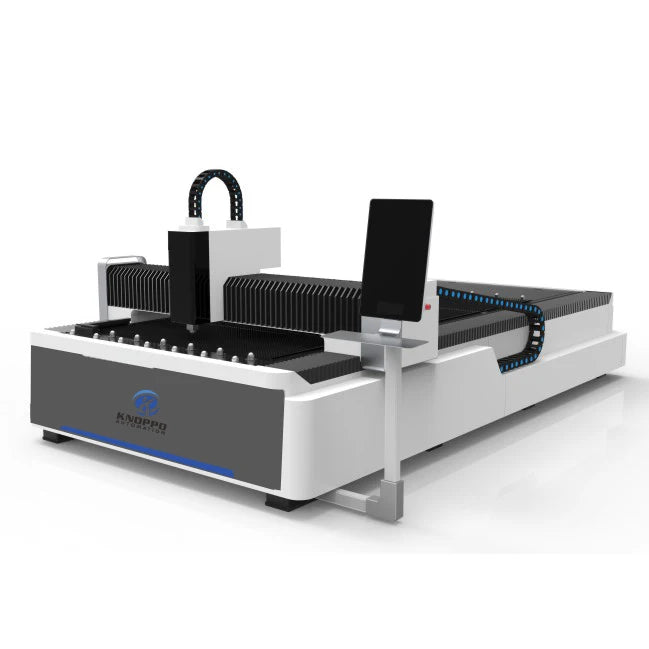

Exchange Table Metal Plate Fiber Laser Cutting Machine

Exchange Table Metal Plate Fiber Laser Cutting Machine

1000 W / 6000*2000mm / Raycus|KE6020
€15.113,99 EUR
Skip to product information
Exchange Table Metal Plate Fiber Laser Cutting Machine
1/6

Exchange Table Metal Plate Fiber Laser Cutting Machine

€15.113,99 EUR
power(w)
cutting area
Laser Source Brand|model number

SPECIFICATIONS

Applicable Material: Metal

Control Software: CYPCUT

Control System: Cypcut

Cutting Speed: 10m/min

Driver: Japan Fuji

Feature: 3D

Key Selling Points: Automatic

Laser Head: Switzerland Raytools

Laser Source: Raycus

Machine overall dimensions: 15100*3000*2000mm

Machine weight: 16000KG

Motor: Japan Fuji

Product name: CNC Fiber Laser Cutting Machine

Water Chiller: S&A

Weight: 16000 KG

Working area: 6000*2000mm

brand name: KNOPPO

cnc or not: Yes

condition: New

configuration: 3-Axis

control system brand: Cypcut

cooling mode: Water Cooling

cutting thickness: 0.5~20mm

graphic format supported: AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP

guiderail brand: Taiwan PMI

laser head brand: Switzerland Raytools

laser type: Fiber Laser

mode of operation: Continuous Wave

optical lens brand: II-VI

place of origin: China

products handled: Sheet Metal

servo motor brand: Japan YASKAWA

warranty: 3 years

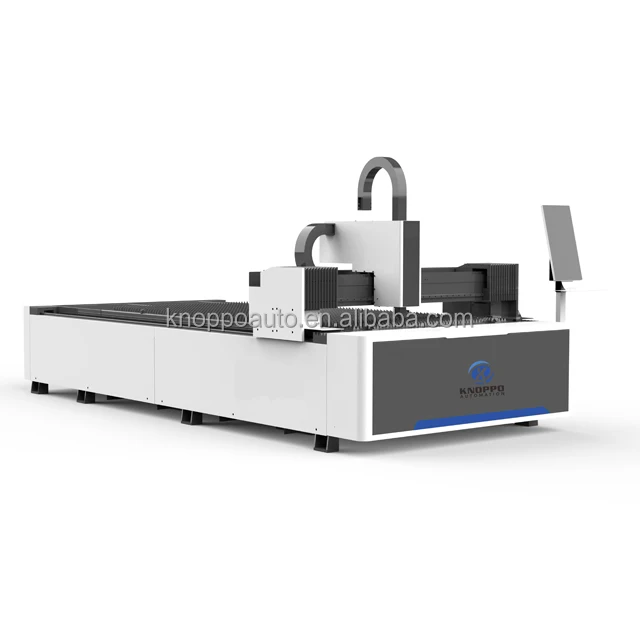

1000W 2000W 3000W 4000W Metal Stainless Steel CNC Fiber Laser Cutting Machine

KE series exchanged table fiber laser cutting machine is dual platforms, fast switching, higher cutting efficiency.Bilateral six arris sticks can realize overall positioning, more stable. WIFI remote assistance can realize troubleshooting in time.
Product Description
Applicable Industry Of 1000W 2000W 3000W 4KW 4000W Metal Stainless Steel CNC Fiber Laser Cutting Machine
Metal working , advertising signs, decoration, arts and crafts, electronics, electric appliances, agricultural machine , metal spare parts , furniture , windows and doors working etc. Applicable Materials Of 1000W 2000W 3000W 4KW 4000W Metal Stainless Steel CNC Fiber Laser Cutting Machine Materials such as metal , carbon steel , stainless steel , iron , aluminium , brass , copper , mild steel , gavanized steel tube etc.
Model
KE6020
Laser Power
1000W/1500W/2000W/3000W/4000W/6000W
Working area
3000*1500mm / 4000*2000mm / 6000*2000mm/ 6000*2500mm
Machine overall dimensions
15100*3000*2000mm/
Machine weight
16000kg
Max. linkage speed
140m/min
Max. acceleration
1.5G
Positioning accuracy
0.03mm
Repositioning accuracy
0.02mm
Fastest Exchange Time of Platforms
30s

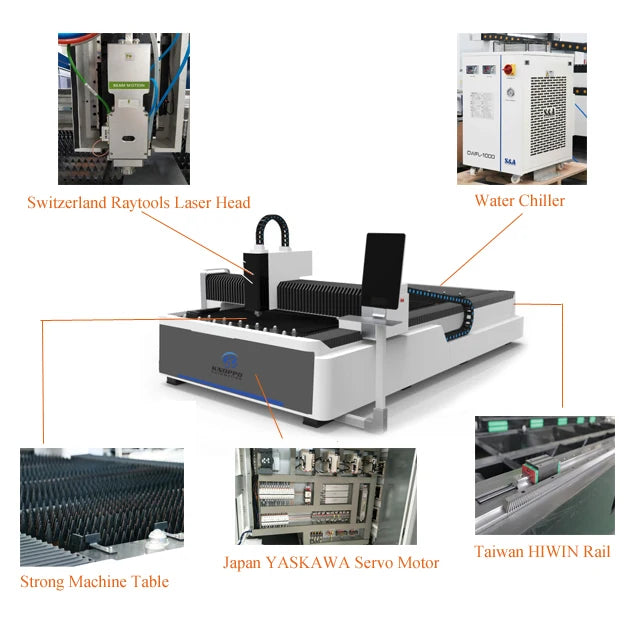

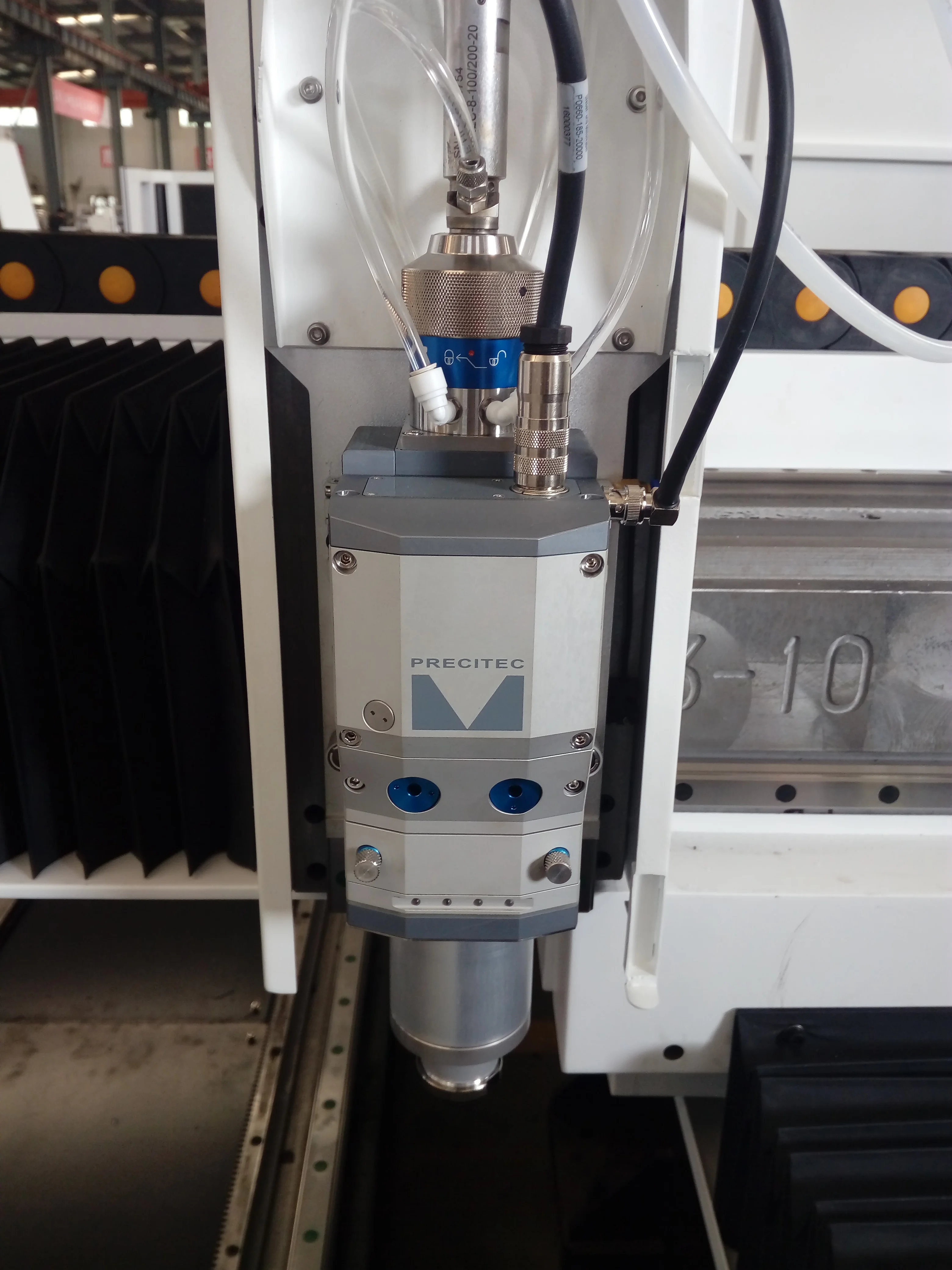

Switzerland Raytools Or Germany Precitec Laser Head
Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.
  • MAX Laser Source

MAX is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .
Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Cypcut Control System
The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.
Japan YASKAWA Servo Motor
1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.

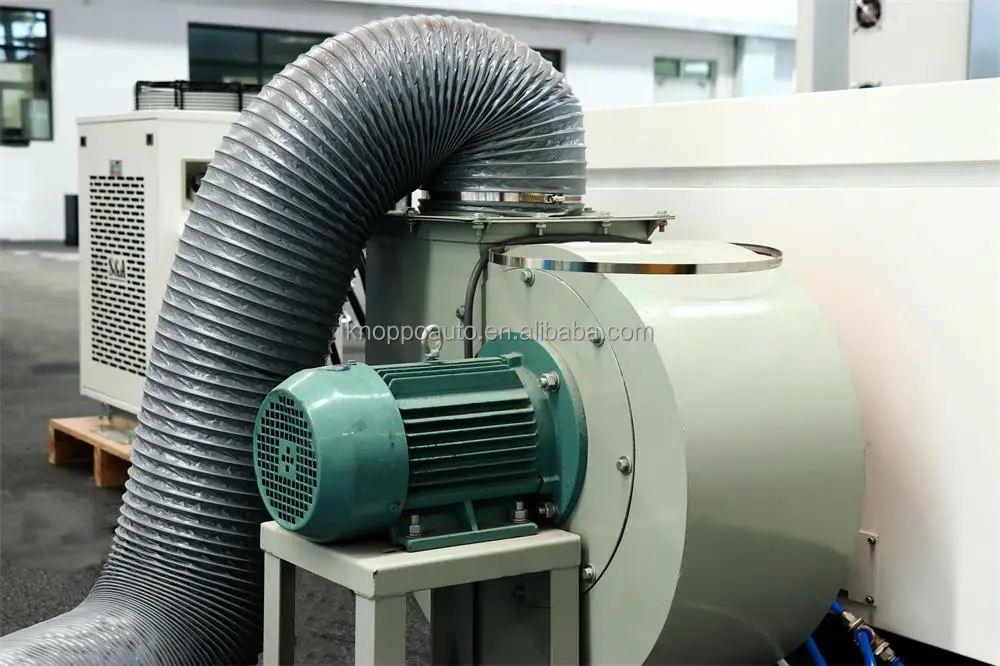

High Power Exhaust Fan

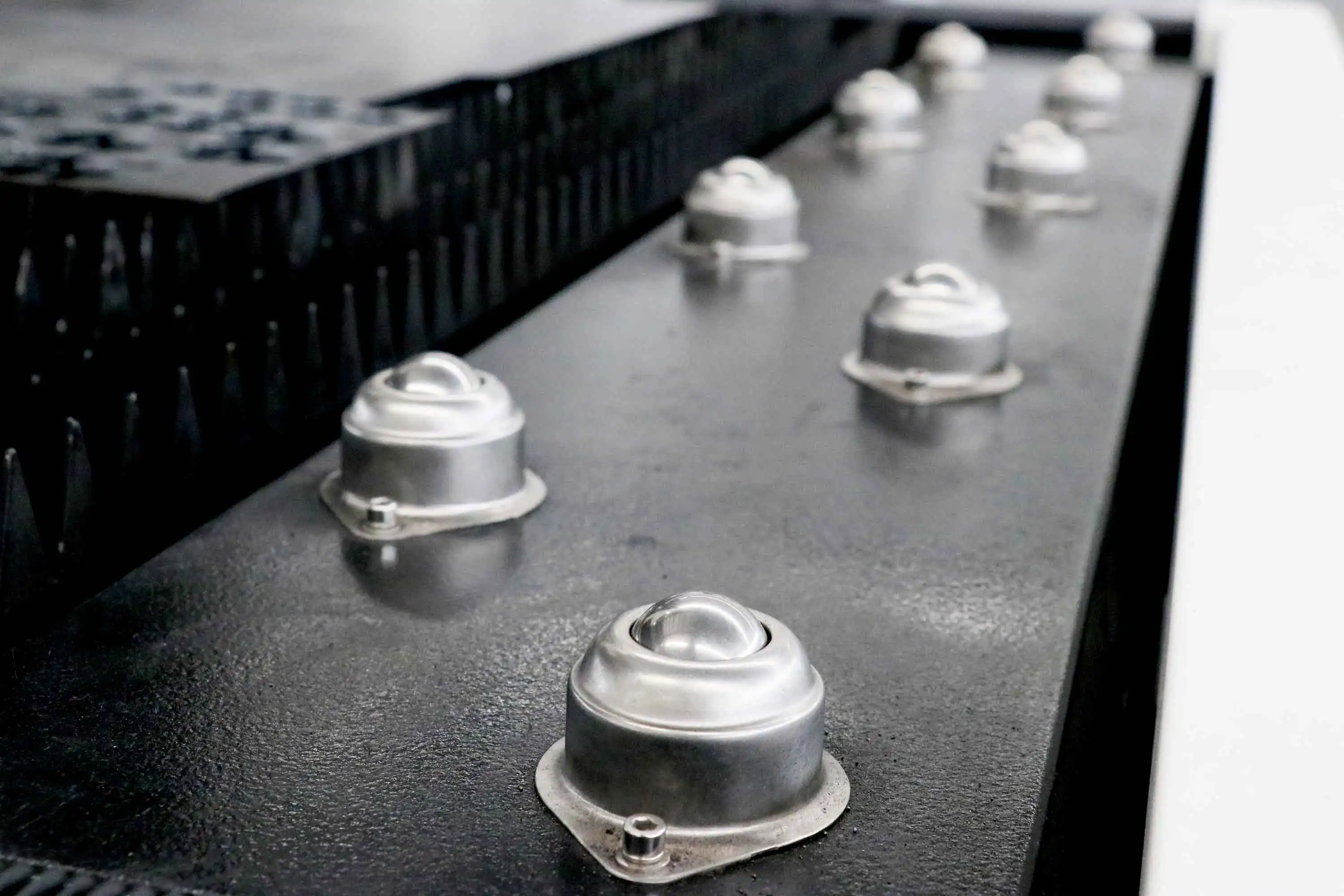

Loading Ball , save labor , easy to load sheet metal .

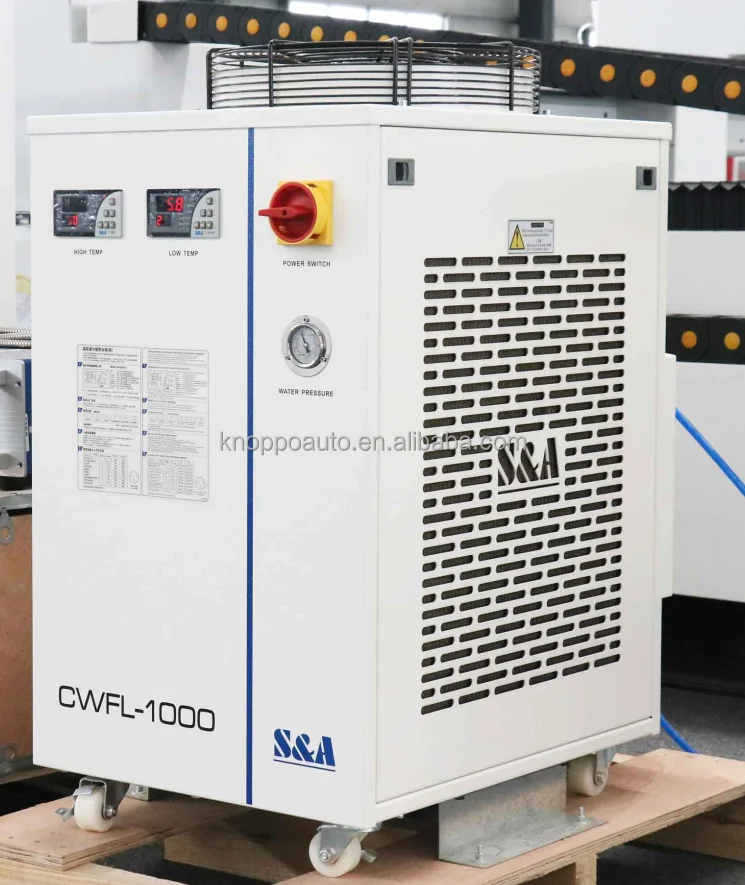

Double Cooling Water Chiller , Colling laser source and laser head .

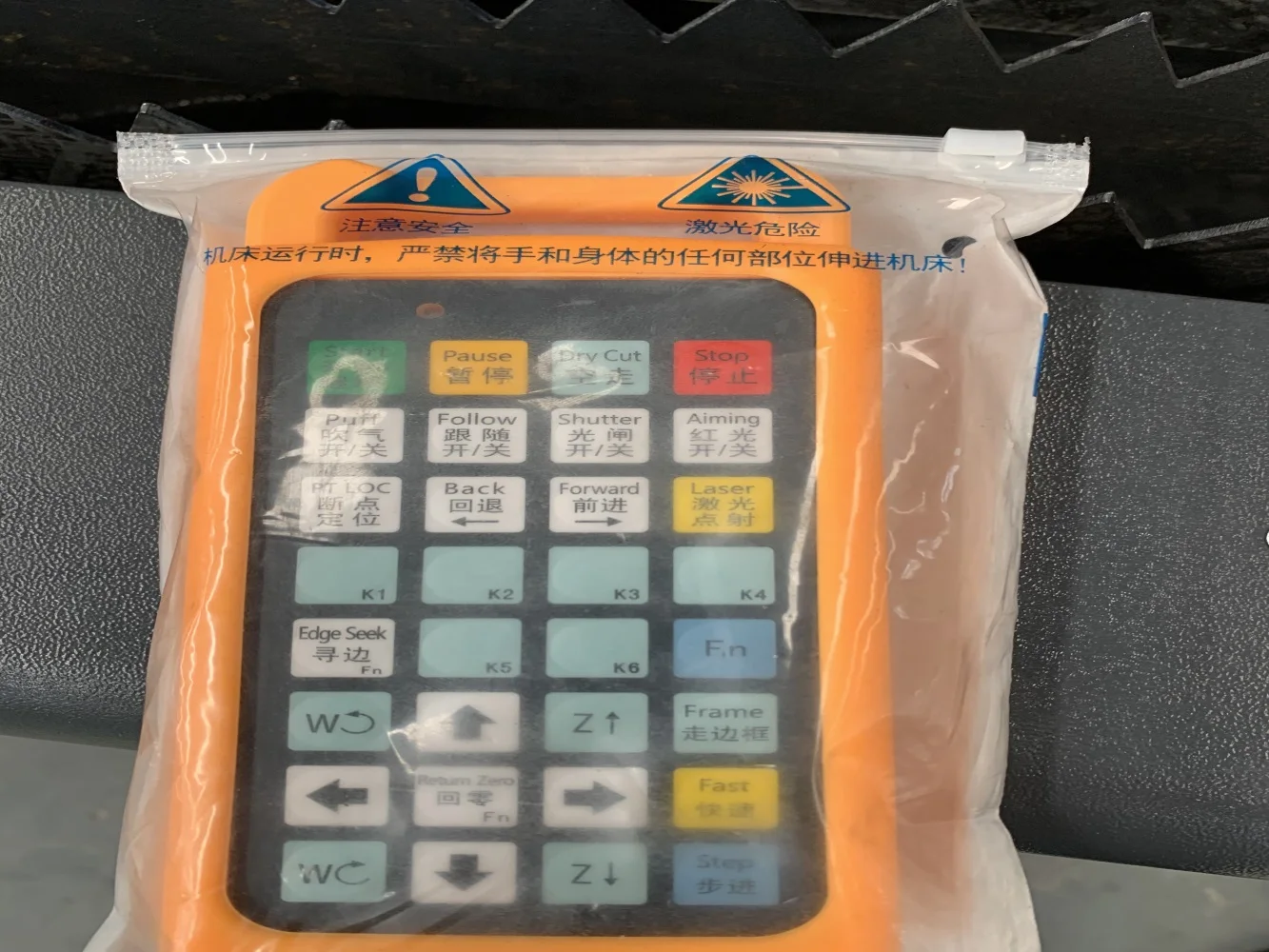

WIFI Rremote Control

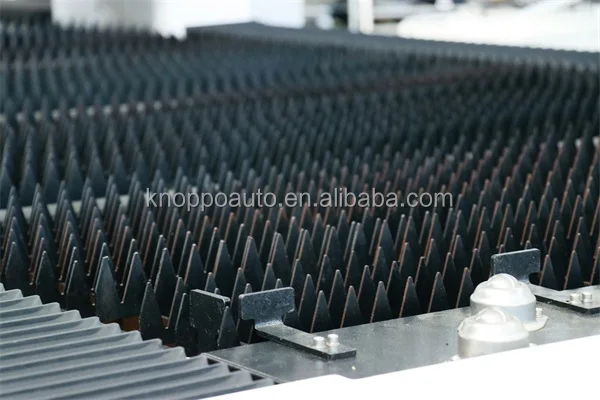

Blade Table , easy for sheet metal cutting

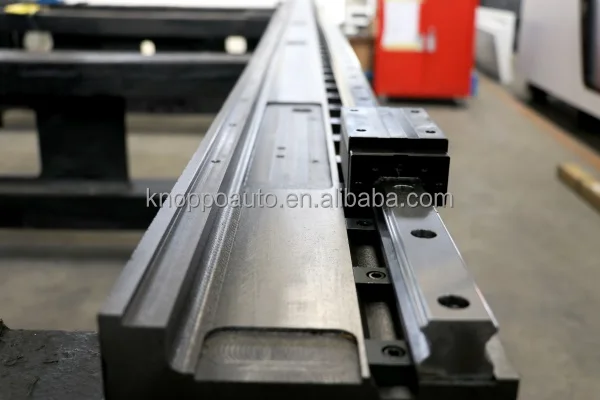

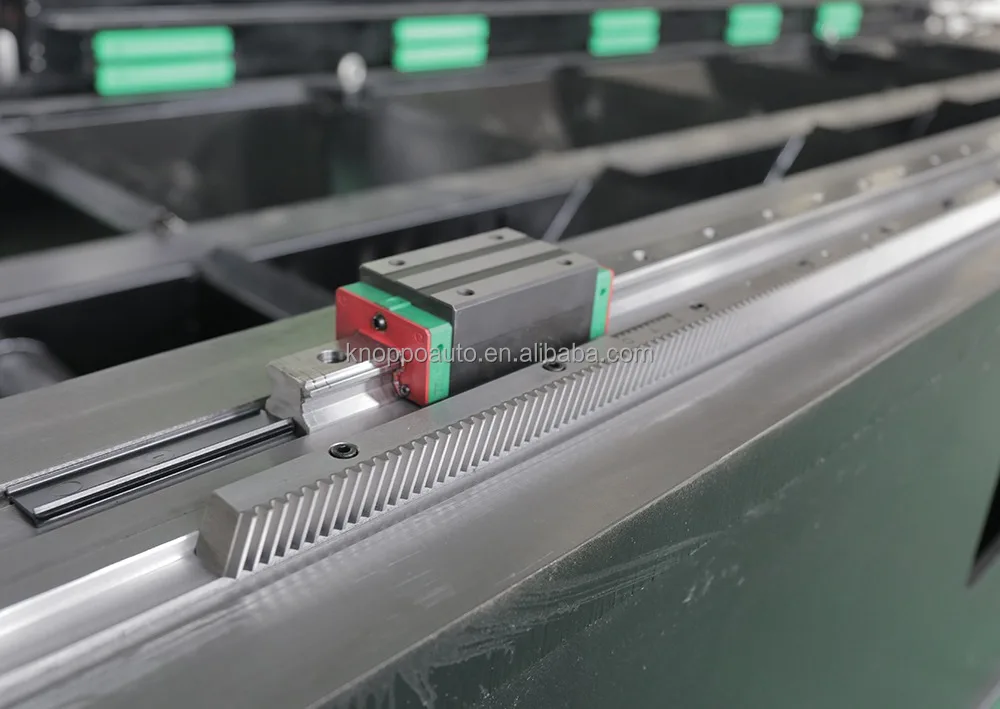

Taiwan Rail and Rack , Good Quality

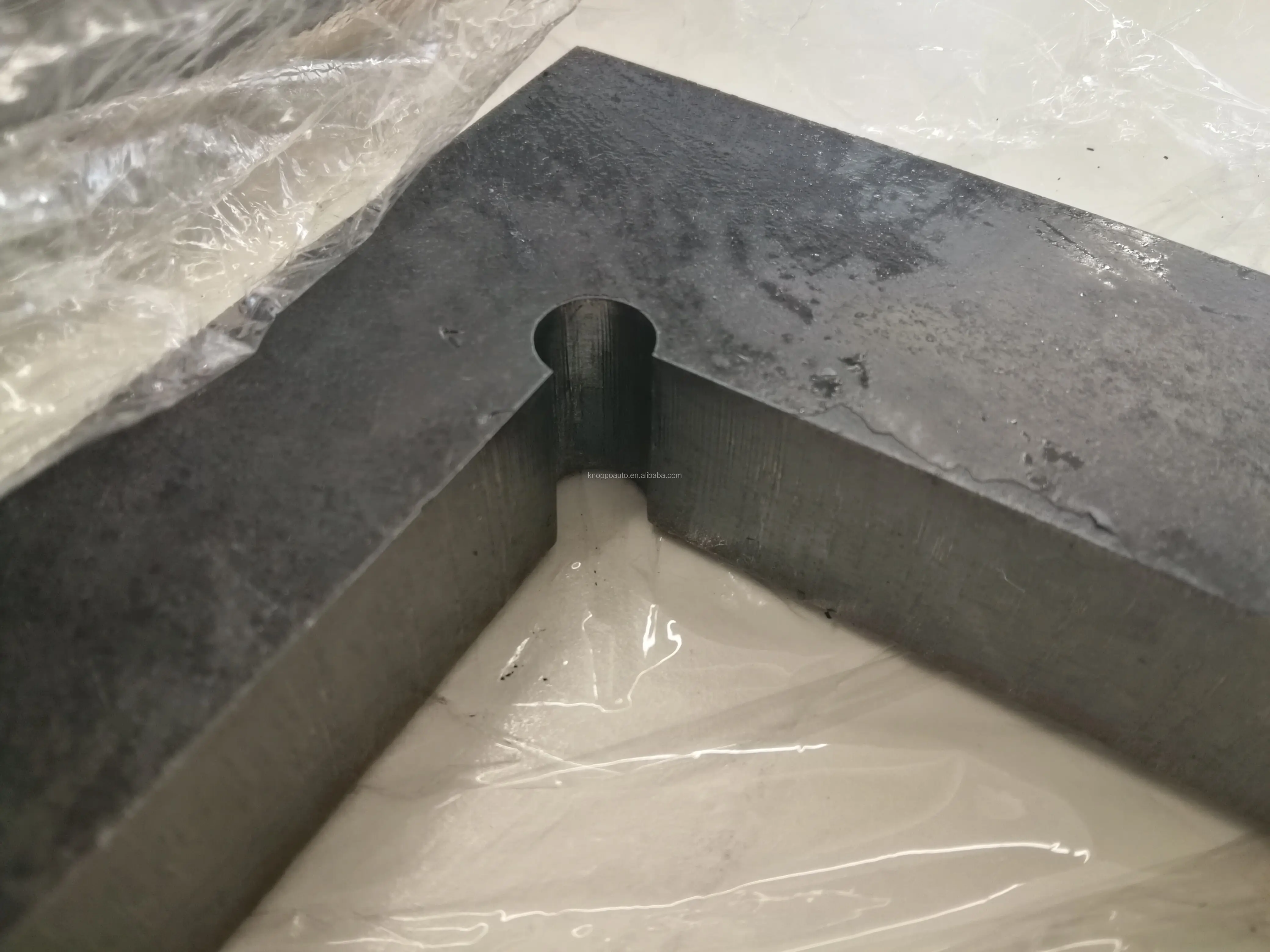

Sample
Certifications
Our fiber laser cutting machine have CE certificates , all electric drawing and quality is suitable European standard .

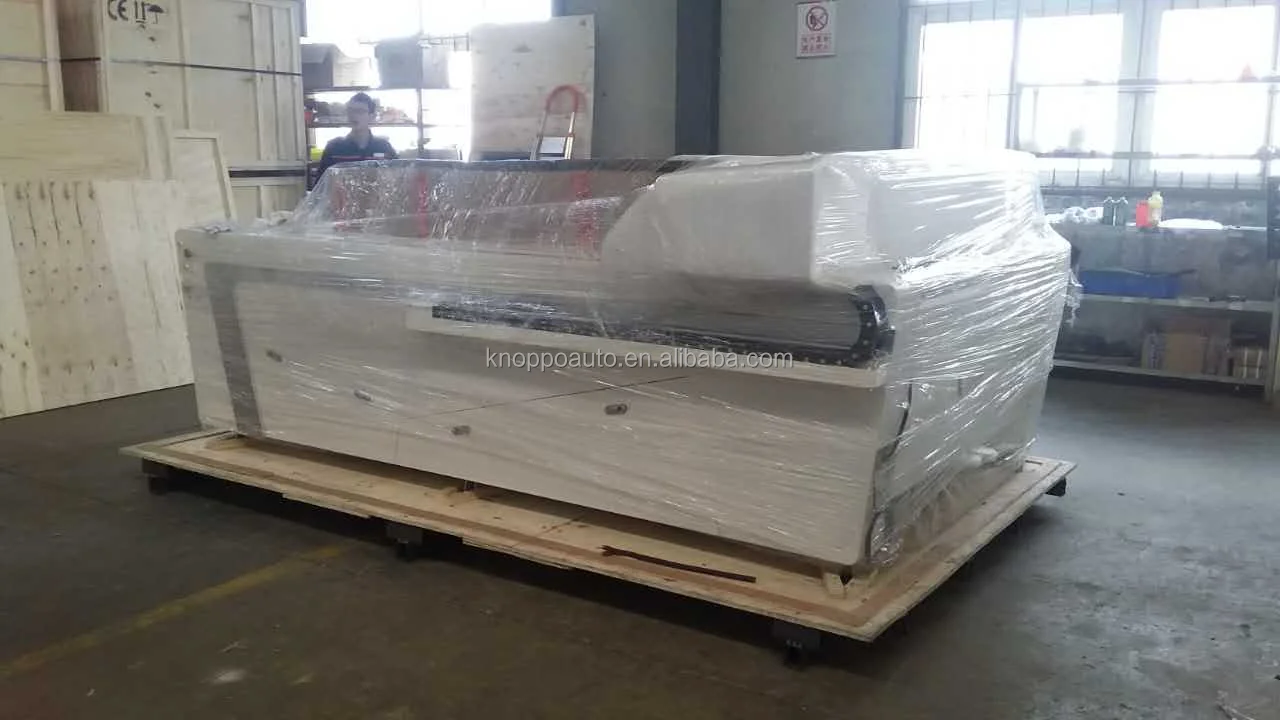

Packing&Shipping
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.

*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Company Introduction

Knoppo Automation is one of the world’s leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 laser cutting systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.

The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine , laser marking machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.China Low Cost CNC Fiber Laser Cutting Machine Fast Speed 1530 Laser Cutter for Metal Stainless Steel
