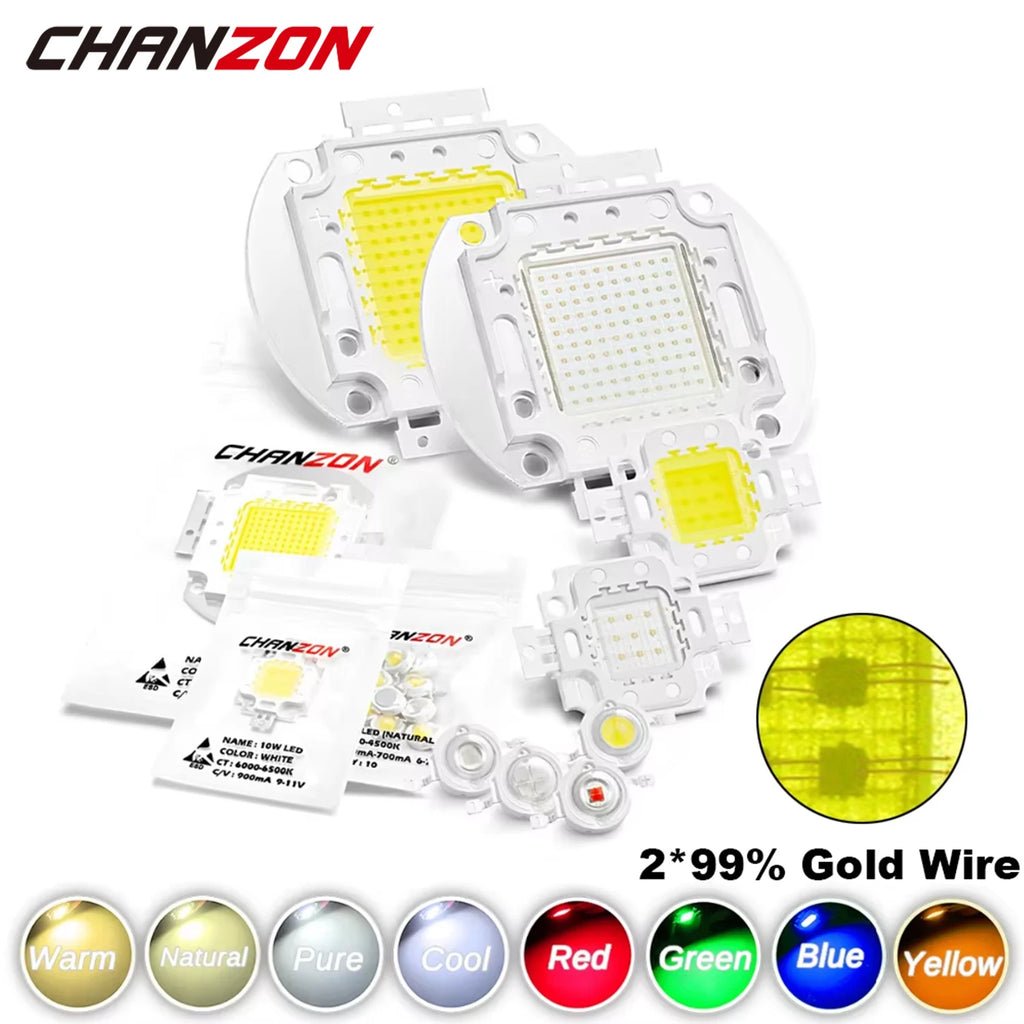

High Power LED Chip 1W 3W 5W 10W 20W 30W 50W 100W Warm Cold White Red Green Blue Yellow SMD Light Bead 1 3 5 10 20 50 100 W Watt
€3,99 EUR
SPECIFICATIONS
Beam Angle: 120 degree
Brand Name: CHANZON
Certification: ce
Chip Size: 4545mil or 2x2448mil (3W) / 3030mil (10-100W) Epistar
Choice: yes

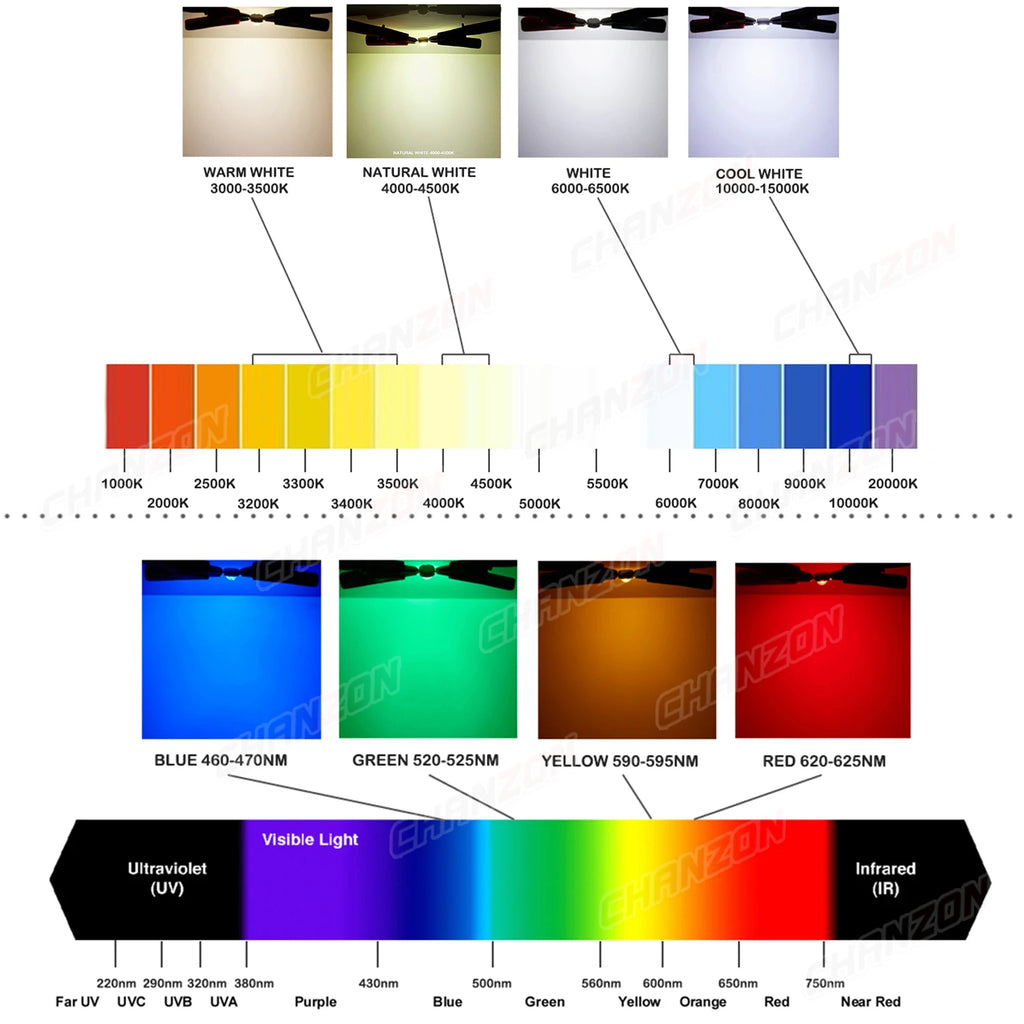

Color: Warm / Natural / Cool / White / Red / Green / Blue / Yellow / RGB
Current: 300mA / 450mA / 600mA / 900mA / 1500mA / 3000mA (Diode Epistar 10000K)
High-concerned chemical: None
Item Type: BALL

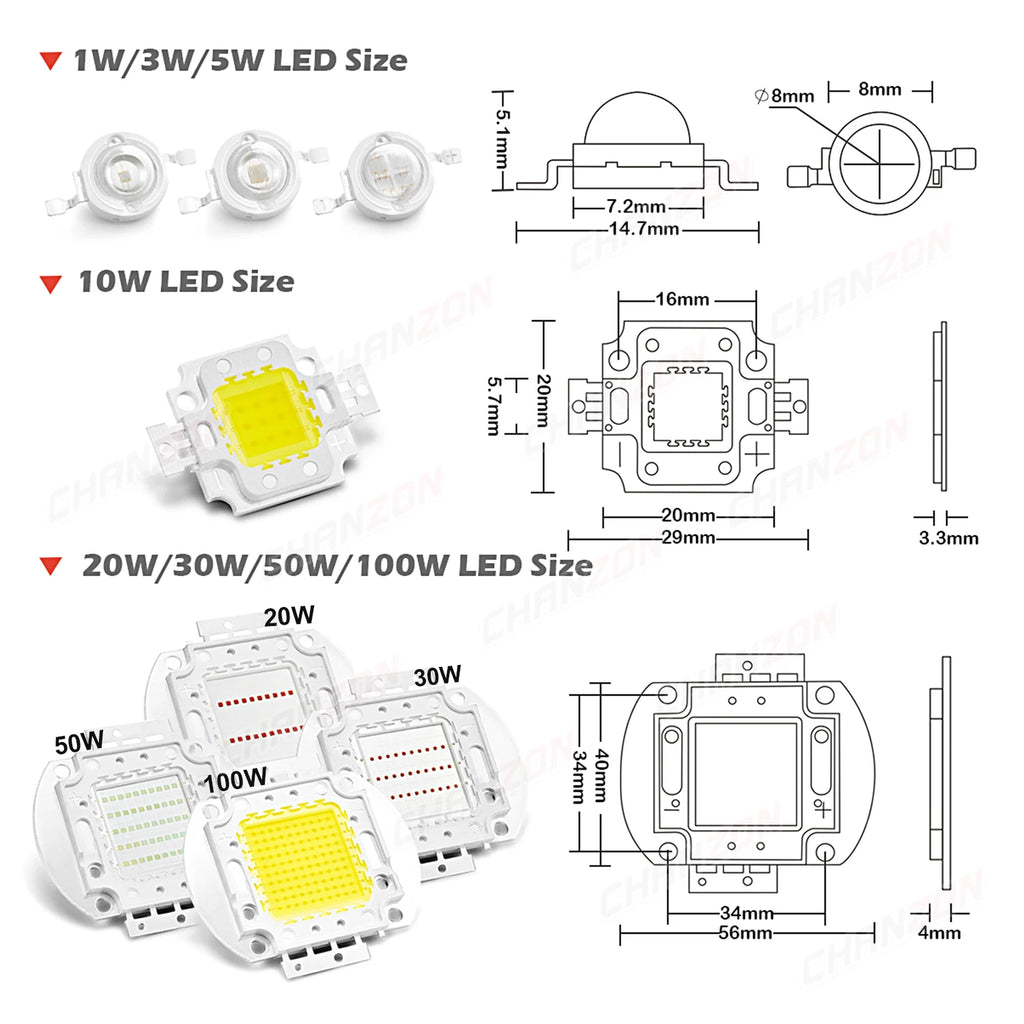

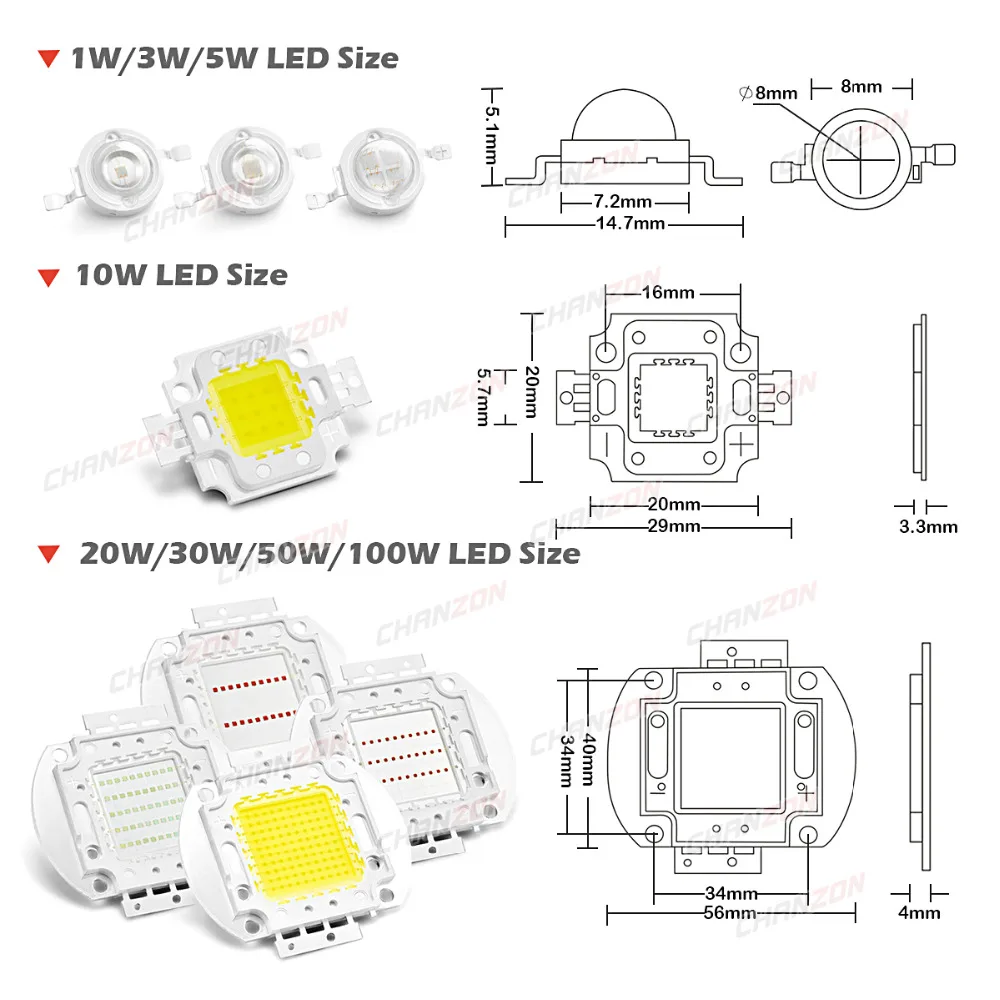

Length: 15mm / 20mm / 56mm

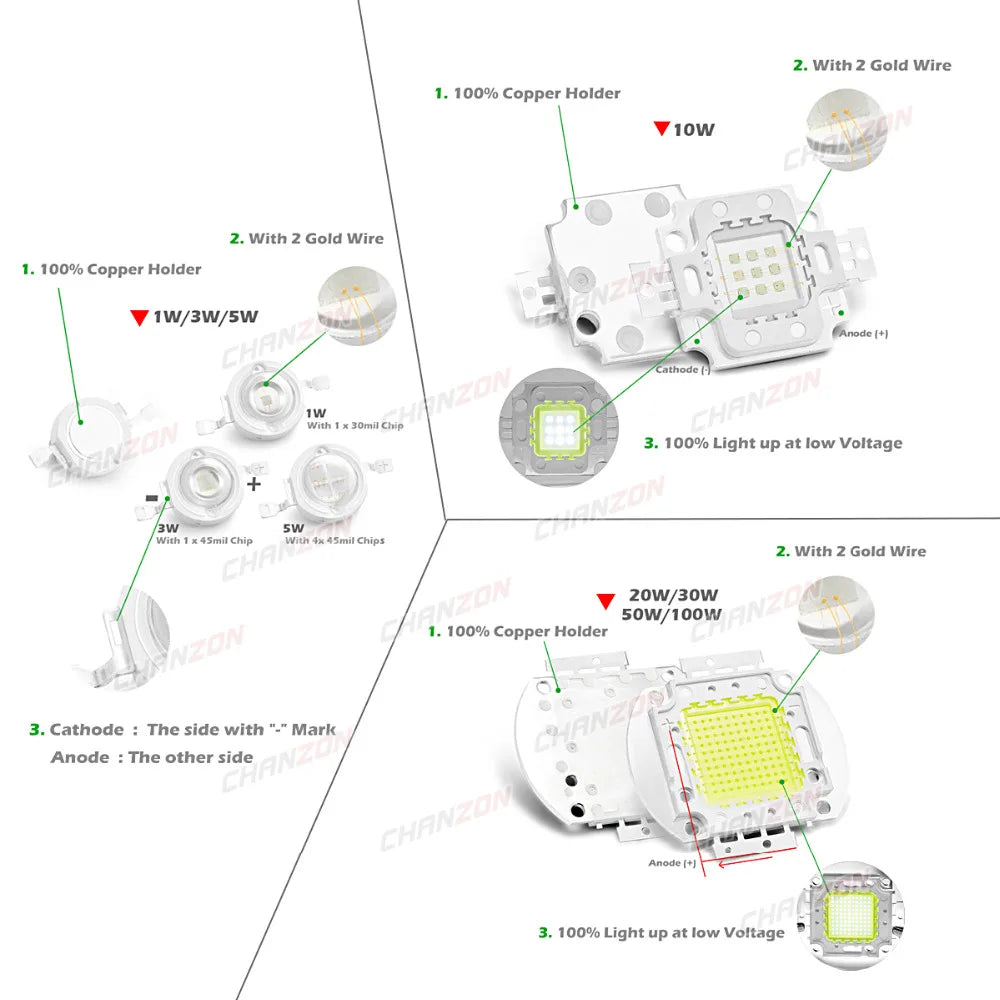

Material: Two (2) Gold Wires (99.99%), Copper Brackets, Dow Corning Glue
Model Number: Warm Natural Cold White RGB Bulb Lamp DIY Matrix Integrated 3000K
Origin: Mainland China

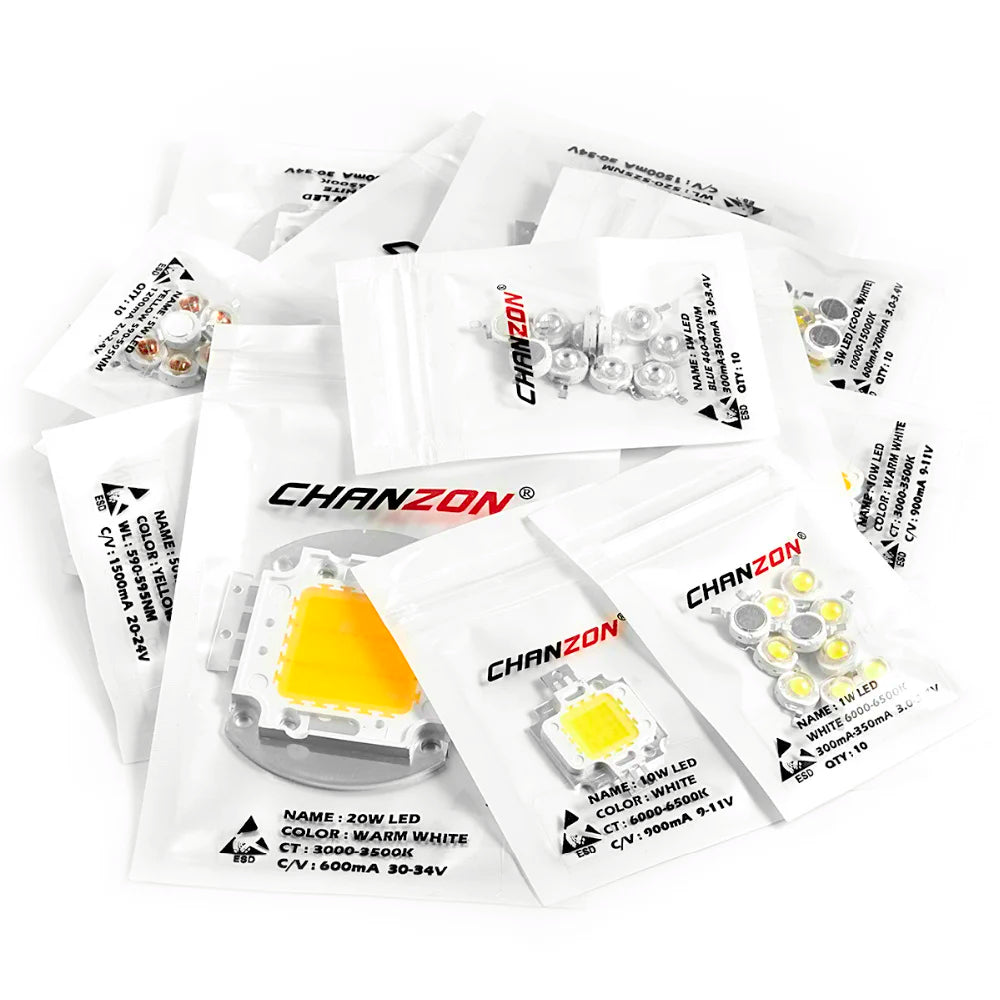

Package: ESD Plastic Bag
Voltage: 3.0-3.4V
semi_Choice: yes

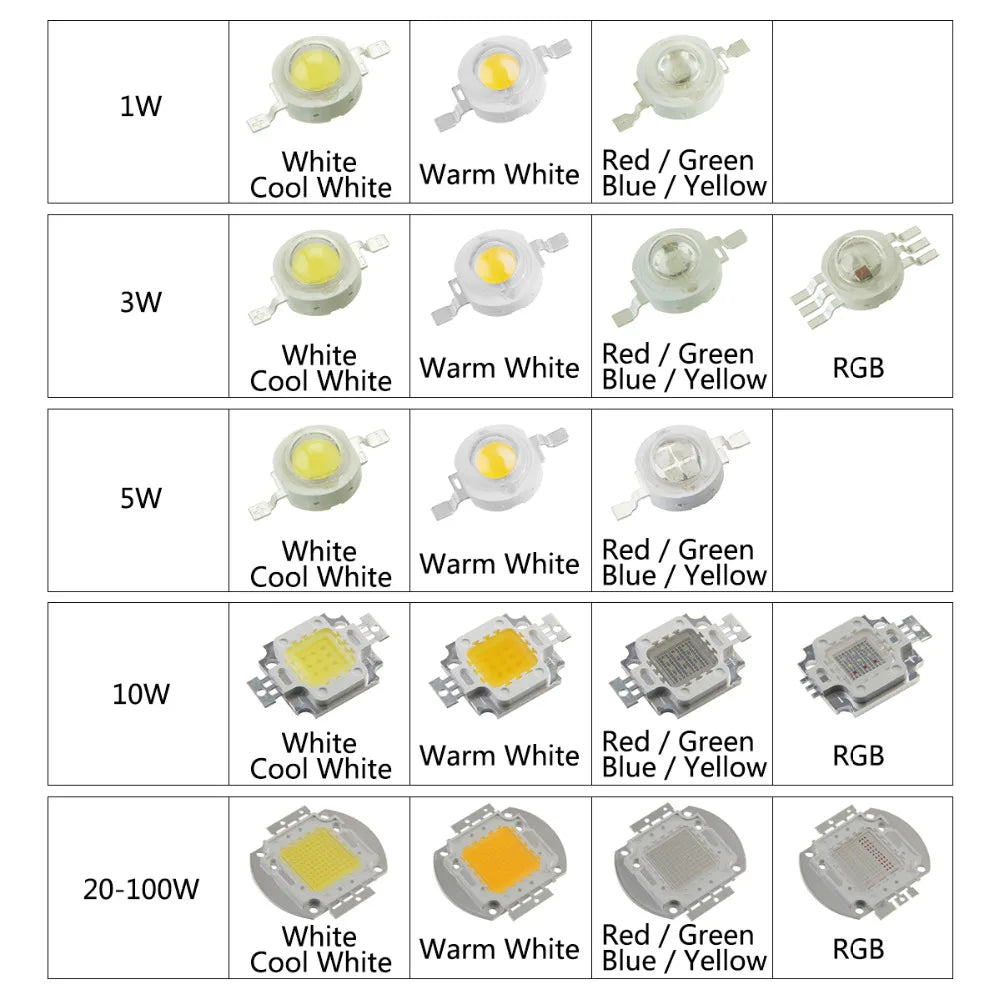

High Power LED Chip 1W 3W 5W 10W 20W 30W 50W 100W LED Beads

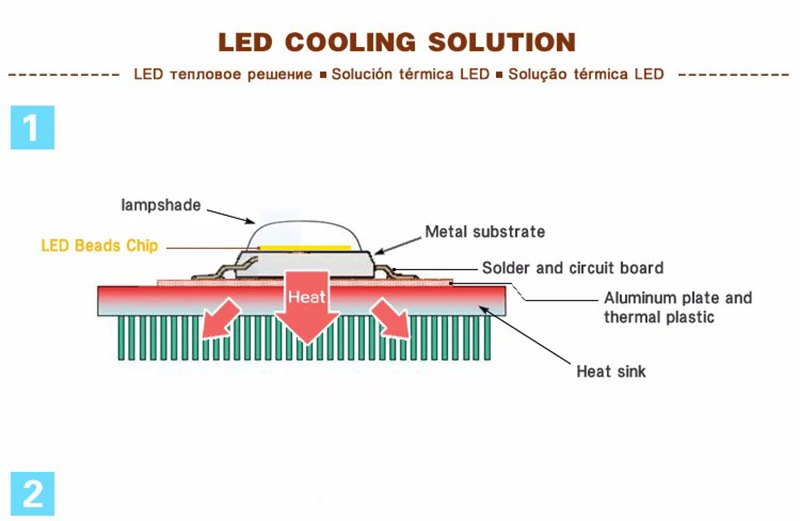

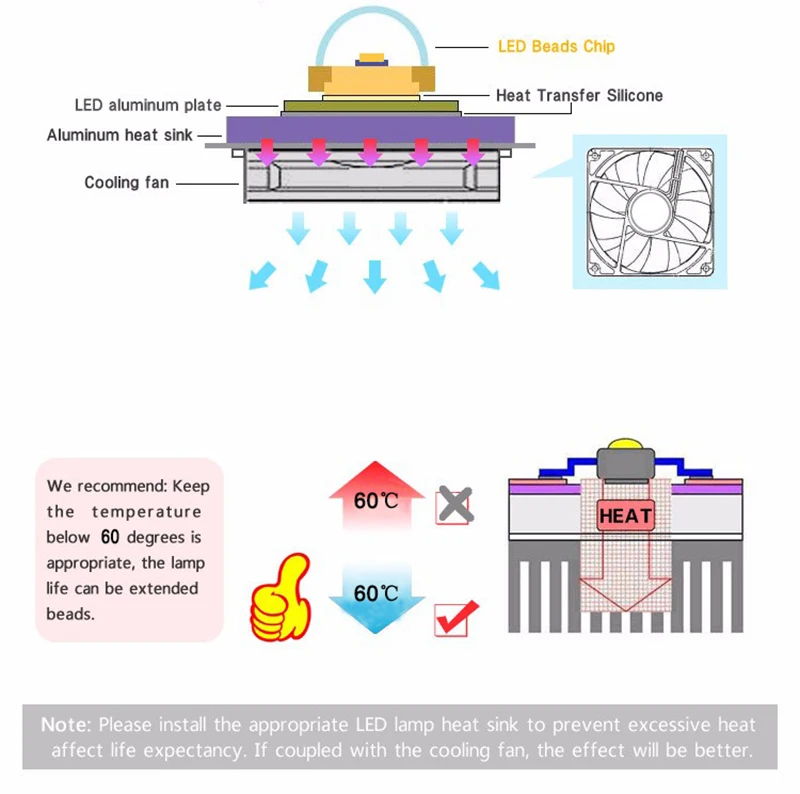

Our LED Chips will work more than 50000 hours if the working temperature is less than 60° So, they need to work wih heatsinks.
We are professional LED Chip supplier,we have all colors of this.You can go to our store for checking.
Details:
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
1W |
Warm White |
3000-3500K |
3.0-3.4V |
300-350mA |
100-110LM |
White |
6000-6500K |
3.0-3.4V |
300-350mA |
100-110LM |
|
Cool White |
10000-15000K |
3.0-3.4V |
300-350mA |
100-110LM |
|
Red |
620-625nm |
2.0-2.2V |
300-350mA |
50-60LM |
|
Blue |
460-470nm |
3.0-3.4V |
300-350mA |
35-45LM |
|
Green |
520-525nm |
3.0-3.4V |
300-350mA |
80-90LM |
|
Yellow |
590-592nm |
2.0-2.2V |
300-350mA |
60-70LM |
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
|
3W |
Warm White |
3000-3500K |
3.0-3.4V |
600-700mA |
260-280LM |
White |
6000-6500K |
3.0-3.4V |
600-700mA |
260-280LM |
|
Cool White |
10000-15000K |
3.0-3.4V |
600-700mA |
260-280LM |
|
Red |
620-625nm |
2.0-2.4V |
400-500mA |
60-70LM |
|
Blue |
460-470nm |
3.0-3.4V |
400-500mA |
50-60LM |
|
Green |
520-525nm |
3.0-3.4V |
400-500mA |
140-160LM |
|
Yellow |
590-592nm |
2.0-2.4V |
400-500mA |
90-100LM |
|
RGB |
R: 620-625nm G: 520-525nm B: 460-470nm |
R:2.0-2.2V G:3.0-3.2V B:3.0-3.2V |
R:600-700mA G:600-700mA B:600-700mA |
R:50-60LM G:80-90LM B:40-50LM |
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
5W |
Warm White |
3000-3500K |
6.0-7.0V |
600-700mA |
500-600LM |
White |
6000-6500K |
6.0-7.0V |
600-700mA |
500-600LM |
|
Cool White |
10000-15000K |
6.0-7.0V |
600-700mA |
500-600LM |
|
Red |
620-625nm |
2.0-2.2V |
1200mA |
115-120LM |
|
Blue |
460-470nm |
6.0-7.0V |
600-700mA |
500-600LM |
|
Green |
520-525nm |
6.0-7.0V |
600-700mA |
150-200LM |
|
Yellow |
590-592nm |
2.0-2.2V |
1200mA |
500-600LM |
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
|
10W (3x3) |
Warm White |
3000-3500K |
9.0-11.0V |
900mA |
900-1000LM |
White |
6000-6500K |
9.0-11.0V |
900mA |
900-1000LM |
|
Cool White |
10000-15000K |
9.0-11.0V |
900mA |
900-1000LM |
|
Red |
620-625nm |
6.0-7.0V |
900mA |
350-450LM |
|
Blue |
460-470nm |
9.0-11.0V |
900mA |
90-100LM |
|
Green |
520-525nm |
8.0-10.0V |
900mA |
600-800LM |
|
Yellow |
590-592nm |
6.0-7.0V |
900mA |
450-500LM |
|
RGB |
R: 620-625nm G: 520-525nm B: 460-470nm |
R: 6.0-7.0V G: 9.0-11.0V B: 9.0-11.0V |
R:300-350mA G:300-350mA B:300-350mA |
R:120-135LM G:210-225LM B:60-75LM |
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
|
20W (10x2) |
Warm White |
3000-3500K |
30-34V |
600mA |
1600-1800LM |
White |
6000-6500K |
30-34V |
600mA |
1600-1800LM |
|
Cool White |
10000-15000K |
30-34V |
600mA |
1600-1800LM |
|
Red |
620-625nm |
20-22V |
600mA |
1600-1800LM |
|
Blue |
460-470nm |
30-34V |
600mA |
350-400LM |
|
Green |
520-525nm |
30-34V |
600mA |
1600-1800LM |
|
Yellow |
590-592nm |
20-22V |
600mA |
1400-1600LM |
|
|
RGB (6x3) |
R: 620-625nm G: 520-525nm B: 460-470nm |
R:12-14V G:18-21V B:18-21V |
R:300-350mA G:300-350mA B:300-350mA |
R:240-270LM G:420-450LM B:120-150LM |
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
|
30W (10x3) |
Warm White |
3000-3500K |
30-34V |
900mA |
2700-2800LM |
White |
6000-6500K |
30-34V |
900mA |
2700-2800 LM |
|
Cool White |
10000-15000K |
30-34V |
900mA |
2700-2800 LM |
|
Red |
620-625nm |
20-22V |
900mA |
2700-2800 LM |
|
Blue |
460-470nm |
30-34V |
900mA |
900-1000 LM |
|
Green |
520-525nm |
30-34V |
900mA |
2700-3000 LM |
|
Yellow |
590-592nm |
20-22V |
900mA |
2400-2600 LM |
|
RGB |
R: 620-625nm G: 520-525nm B: 460-470nm |
R:20-22V G:30-32V B:30-34V |
R:300-350mA G:300-350mA B:300-350mA |
R:400-450LM G:700-750LM B:200-250LM |
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
|
50W (10x5) |
Warm White |
3000-3500K |
30-34V |
1500mA |
4500-5000LM |
White |
6000-6500K |
30-34V |
1500mA |
4500-5000LM |
|
Cool White |
10000-15000K |
30-34V |
1500mA |
4500-5000LM |
|
Red |
620-625nm |
20-22V |
1500mA |
3500-4000LM |
|
Blue |
460-470nm |
30-34V |
1500mA |
2000-2500LM |
|
Green |
520-525nm |
30-34V |
1500mA |
4000-4500LM |
|
Yellow |
590-592nm |
20-22V |
1500mA |
3500-4000LM |
|
|
RGB (8x6) |
R: 620-625nm G: 520-525nm B: 460-470nm |
R:16-18V G:24-27V B:24-27V |
R:600-700mA G:600-700mA B:600-700mA |
R:600-700LM G:1100-1200LM B:300-400LM |
Power |
Color |
Color Temperature Wavelength |
Forward Voltage |
Forward Current |
Luminous Flux |
|
100W (10x10) |
Warm White |
3000-3500K |
30-34V |
3000mA |
8000-9000LM |
White |
6000-6500K |
30-34V |
3000mA |
8000-9000LM |
|
Cool White |
10000-15000K |
30-34V |
3000mA |
8000-9000LM |
|
Red |
620-625nm |
20-22V |
3000mA |
6000-6500LM |
|
Blue |
460-470nm |
30-34V |
3000mA |
3000-4000LM |
|
Green |
520-525nm |
30-34V |
3000mA |
7000-8000LM |
|
Yellow |
590-592nm |
20-22V |
3000mA |
7000-8000LM |
|
|
RGB (11x9) |
R: 620-625nm G: 520-525nm B: 460-470nm |
R:22-26V G:30-37V B:30-37V |
R:900mA G:900mA B:900mA |
R:1300-1500LM G:2300-2500LM B:650-800LM |
